Most of the retail business such as minimarket, supermarket may need a price pole to display their product’s price to the client when checkout. The steps to set up the price pole with your POS will be explained at below.
Firstly, connect the price pole to the PC and make sure it is connected every time you used. After that, login to the Treezsoft POS system using the administrative ID (the email address you used to register Treezsoft Accounting).
To login, please go to http://accounting.treezsoft.com/pos/?type=ui§ion=login

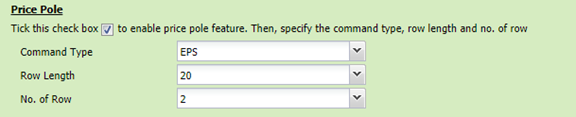

Then, go to the Setting and select Preferences. Check the box to enable price pole feature and specific commend type, row length and no. of row in the required field, Save.
Note: The connected Price Pole should support EPS command type, having 2 rows of display with max 20 characters per row.
Now, you can go back to the POS to perform sales transaction and observe the connected price pole.
(If you never install our integrator or the price pole is not showing amount, please refer section Pre-requisite)
Pre-requisite:
1) Install Device Integrator

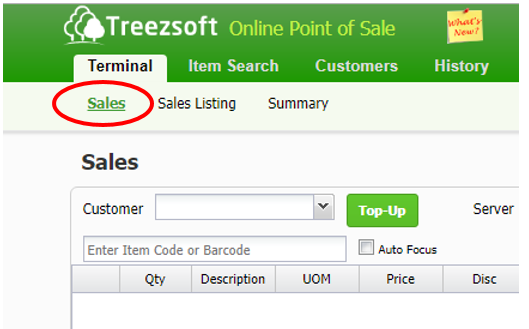

Connect price pole to the PC and go to Terminal and select Sales.

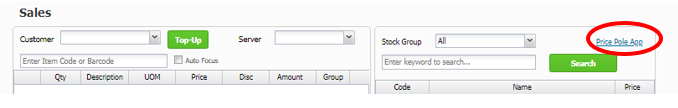

Download Device Integrator by click on Price Pole App.

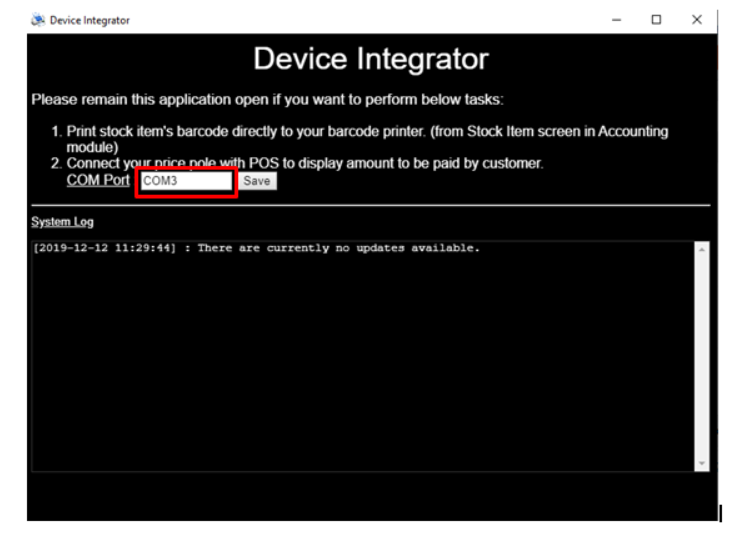

After the Device Integrator successfully installed, double click on the Device Integrator then below figure will show up. A default Com Port is given in the highlighted box, if the Com Port is not same as yours then you can change it manually and save.

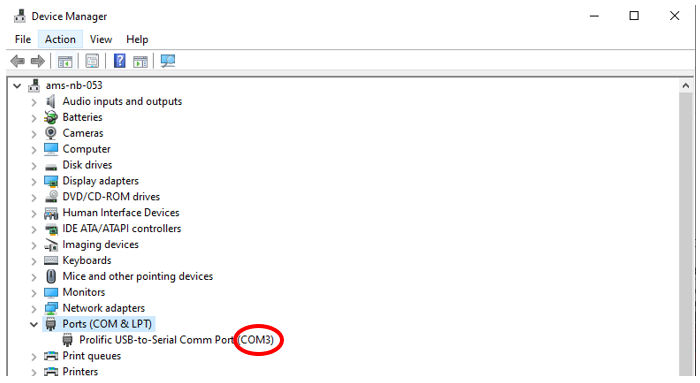

To check the PC’s COMPORT, go to Device Manager and select the Ports (COM & LPT). The COMPORT should looks like in the circle.

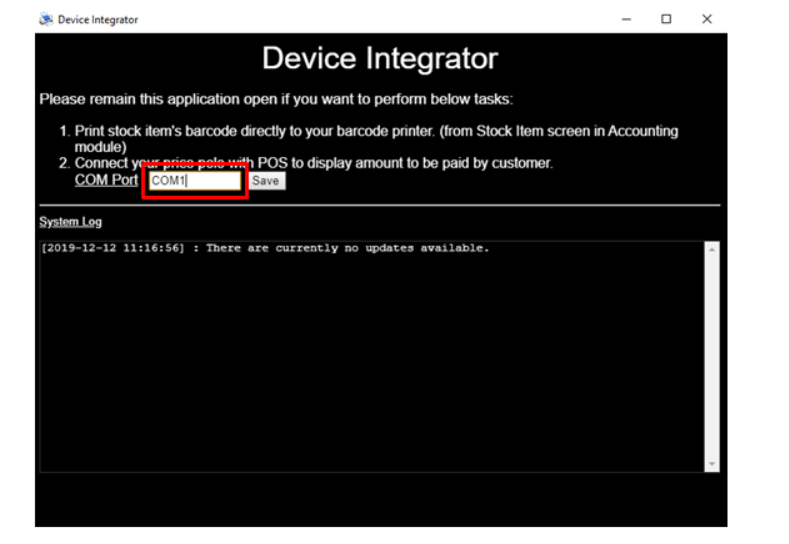

Next, go back to the Device Integrator, change the Com Port in the highlighted box and click save.
* This program needs manually start up during Windows start up.
Important:
- Make sure do not close the window. If it is closed, please run "Device Integrator" again in order for the price pole to works.
- DO NOT move the "Device Integrator" or any files within it to other place after installation done.
